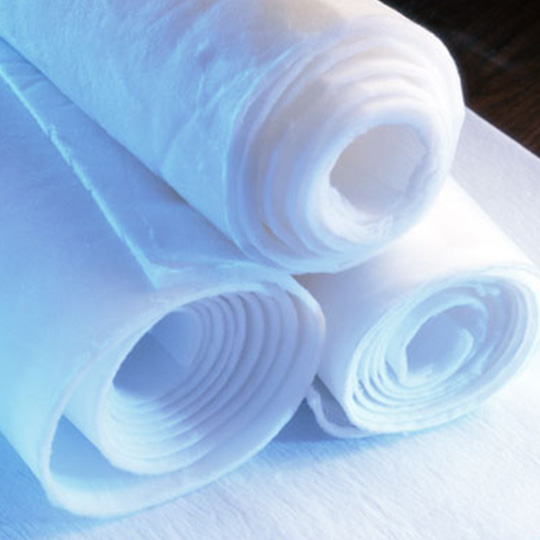

Super Thin Felt
The MEGEL-CB series is an ultra-thin insulation material made of aerogel composite ultra-thin fibers. According to different substrates, it can be divided into three types: GF/PF/ and POF. The thickness of the product is customizable, according to customer requirements.
SEND EMAIL CHAT NOWMEGEL- CB Series Super Thin Felt
The MEGEL-CB series is an ultra-thin insulation material made of aerogel composite ultra-thin fibers. According to different substrates, it can be divided into three types: GF/PF/ and POF. The thickness of the product is customizable, according to customer requirements.
CHARACTERISTIC
(1) Excellent thermal insulation performance.
(2) Light and soft, easy to process.
(3) Thinner thickness, suitable for customers with high requirements on space.
(4) Customizable thickness GF (0.2-2mm) / PF (0.15-1mm) / POF (2-3.5mm).
TECHNICAL DATA
Product Model |
MG-CB-GF |
MG-CB-PF |
MG-CB-POF |
Standardization |
Thermal conductivity （25℃） |
·k |
·k |
·k |
ASTMA411-2011 |
Maximum temperature（℃ |
400 |
100 |
400 |
ASTMA411-2011 |
Thickness (mm) |
0.2-2 |
0.15-1(±10%) |
2(±10%) |
Thickness gauge |
|
Size (mm) (Customizable) |
Slice/roll
|
Slice/roll
|
Slice/roll
|
/ |
Flame-retardant level |
UL94-V0 |
/ |
UL94-V0 |
GB/T 2408-2008 |
Color |
White |
White |
Black |
/ |
Hydrophobic |
/ |
Yes |
Yes |
/ |
Package |
Packed in rolls or boxes |
|||
APPLICAITONS
PACKING
Packed in rolls or boxes. We recommend storing the product in closed containers under dry conditions and to protect the material from volatile substances. Do not rub or shake the aerogel felt to prevent falling off the aerogel powder.
